Aluminium Louver 48E

Sunshield louver 48E

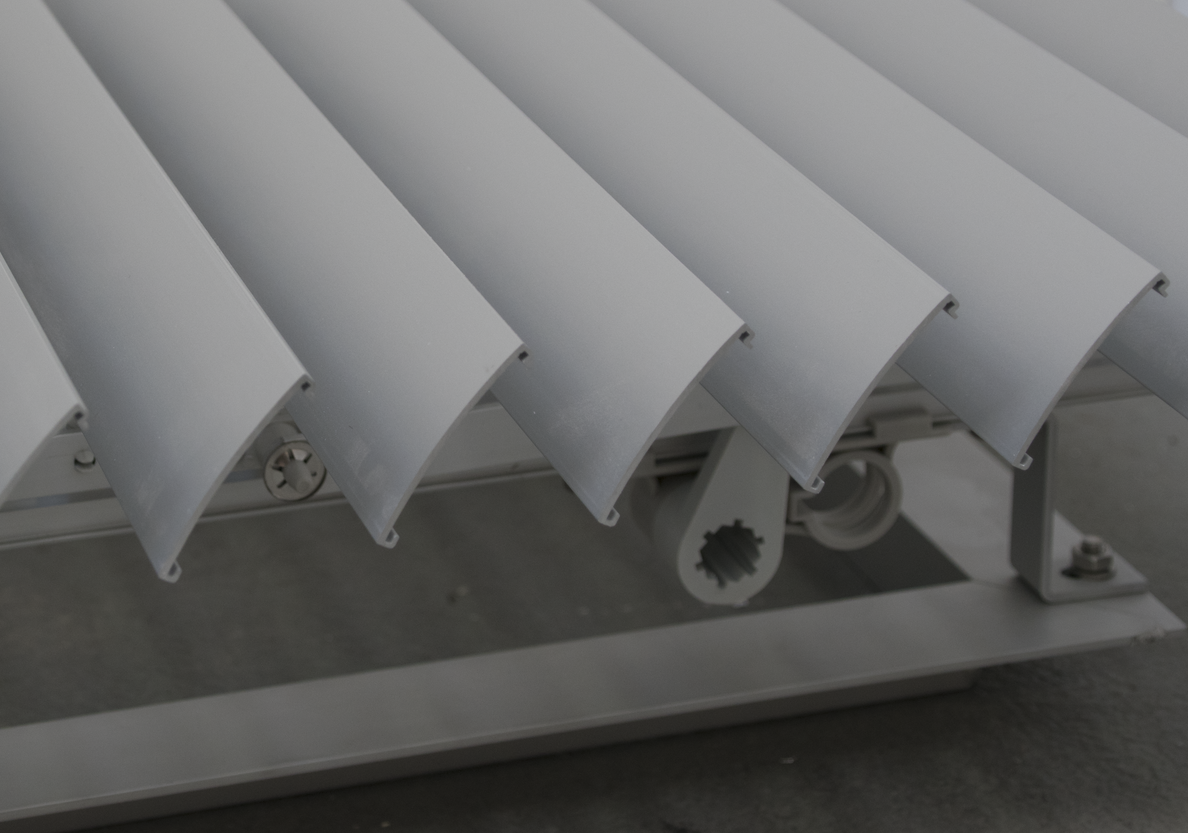

The 48E louver is made of a high grade extruded aluminium. The size is 48 mm. It is suited for internal installation for horizontal, vertical and sloping situations. The possibilities in width, height, special shapes and operation are almost unlimited.

Sunshield louver 48E


For live impressions & different applications go to "More projects for this Product".


Main technical dimensions for aluminium louver 48E

The next figure shows a schematic overview of a 48E
system consisting of rack arms and 48E louvers.






Aluminium louver 48E


Size of louver

48 mm


Thickness of louver

1,2 mm


Louvers moveable

0-  90 o








Maximum Width (W)

690 cm


Maximum Drop / Length (L) in drawing 540 cm  *

600 cm


Maximum area

25 m2


Louver - Louver distance (Step / Pitch) (S)

45 mm




Maximum Rack arm distance (X)

120 cm


Maximum Side overhang (Y)

40 cm


* = number of rack arms placed beneath each other is unlimited

Aluminium louver 48E in different positions

The 48E Louvers are moveable in every position between 0 and 95 degrees.                                         In the following overview the louvers are represented every 15 degrees from 0 to 90 degrees in vertical position (for normal windows) and horizontal position (for roof lights and sky lights).
Of course the Sunshield blinds can be installed at any slope wished.



In the above overview tree louvers are placed in the position 0°, 45° and 90 degrees.


A stylish and reliable Installation for every 48E System

The 48E System can be provided with 3 rack arms. In 90% of the projects the Standard Rack Arms fulfills the job perfectly, but in special circumstances the "Heavy Duty Rack Arm" or the "Box Rack Arm" are used. Additionally, Sunshield has a broad experience and a large assorment of mounting brackets and methods. With that, a stylish and reliable installation is guaranteed for every blind in every situation. For each project, the Sunshield engineers provide a detailed installation scheme, customized to the specific situation of that project. They are specialized in making the system "disappear" in the mullions, window frames and beams. It is guaranteed that the Sushield system gives an integrated view with the building.







Rack arm

Heavy Duty rack arm

Box rack arm


35 mm

80 mm

98 mm


Installation depth

Depending on the choice of rack arm and the installation brackets the system will have a specific installation depth. The standard bracket solutions have been represented in an overview that you can open by clicking on the image to the right. If you need a larger or smaller installation depth, the Sunshield engineers can adapt the system to your requirements.


A wide variety of Colours and Treatments

Sunshield has many colours in stock. Additionally it is possible to have customized colouring and treatments. It is even possible that louvers, rack arm and plastic components each have a different colour to achieve sophistacted architectural impressions. The most common treatments for aluminium parts are Powder Coating and Anodising. Anodising can be done natural and in different colours. Powder coating is done in all RAL colours. Custom made colours and structures are possible at request. A overview with most common colours is given below.


Jet Black


Silver Aluminium


Grey Aluminium






Pure White


Traffic White


Sepia Brown


Beige Brown


Anthracite Grey


Pebble Grey


Ligth Grey


Platinum Grey


Agate Grey


Turquoise Green


Gentian Blue


Wine Red



The plastic components that make the louvers turn are made from a high-grade polyamide and are standard available in 4 colours. If necessary even the colour of these plastic components can be customized.



Ligth Grey

Pure White






Quality and Certificates of Environmentally friendly production
