Aluminium Louver 88-E

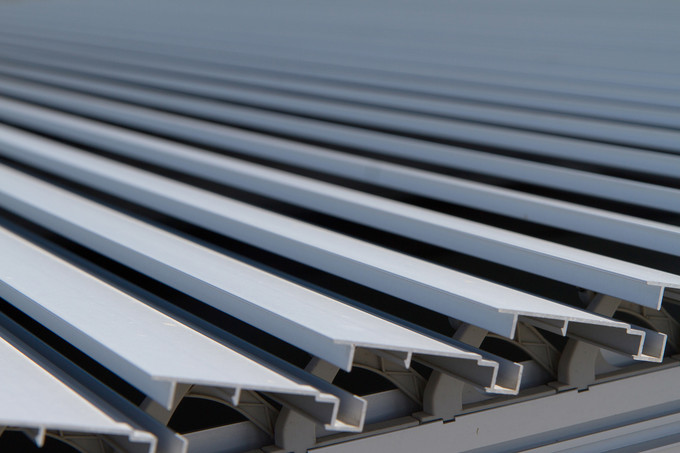

Photo with close-up of the 88-E louver

A 88-E louver system is a non-retractable slatted blind with 88-E louvers. These louvers are made from high-grade extruded aluminium, and have a width 88 mm. A 88-E louver system is suited for all kinds of internal and external installations; horizontal, vertical, sloping, and upside down. 88-E louvers are usually movable, but can also be placed in a fixed position.

Profile of the 88-E louver

The front, the visible side, of the 88-E louver has an almost flat shape. Besides a great overlap, this louver also interlocks. This makes the 88-E louver perfect for black-out systems. So when you are looking for a louver that allows you to darken a room by daylight, the 88-E should be on your short list. The back of the blade is designed for optimal fixation of the clip that holds the slat.

Drawing of the 88E louver profile with width

The 88-E louver system

The following image shows a schematic representation of a 88-E louver system. Such a system consists of at least two rack arms, and a number of louvers, blades.

Drawing rack arm distance S-system

Louver properties

Property
General
Louver type
88-E
Size of louver
88 mm
Thickness of louver
1,5 mm
Movable
0° – 90°
Louver distance / Step (S)*
70 mm
Maximum width (W)*
600 cm
Maximum drop / length (L)*
600 cm

Interior
Exterior
Maximum rack arm distance (X)
140 cm
130 cm
Maximum side overhang (Y)
40 cm
30 cm
Support distance


S 35 mm rack arm
180 cm
120 cm
S 80 mm rack arm
300 cm
240 cm
S 98 mm rack arm
420 cm
350 cm
* = the number of rack arms placed on top, or next to each other, is unlimited.

Sunshield 88-E louvers, the blades, are moveable, and can be placed in any position between 0 and 90 degrees. Sunshield louver systems, the blinds, can be installed horizontal, vertical, in any desired slope, and upside down.
