S-system Rack Arms

The rack arm is mounted to a mullion or a wall. The less mounting points available, the sturdier the rack arm needs to be. For example, when it is necessary to bridge a glass surface, or a gap. In these situations there is nothing available to mount the rack arms to. That is why Sunshield offers several types of rack arms.

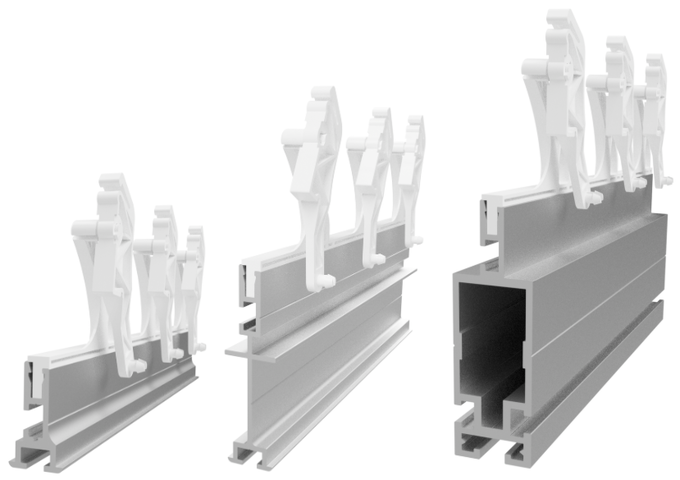

S System Rack Arm options

Flexible and reliable installations

The aluminium louvers up to and including the 117-E and the wooden louvers up to and including the 94-W make use of the S-system. S-system louvers can be supplied with several types of rack arms. In 90% of the situations the standard rack arm will do perfectly. In other circumstances the Heavy Duty Rack Arm or the Box Rack Arm are available to do the job.

Standard Rack Arm

Profile standard rack armThe standard rack arm has a height of 35 mm. That is why the standard rack arm is also referred to as the S 35 mm rack arm. And indeed, the 'S' stands for S-system. The standard rack arm has three tracks. The top one is populated with pivot arms. The other two are available for mounting purposes.

Heavy Duty Rack Arm

Profile heavy duty rack arm The heavy duty rack arm has a height of 80 mm. That is why the term S 80 mm rack arm is used interchangeably for this type of rack arm. The heavy duty rack arm has also three tracks. The pivot arms are installed in the top track. The other two tracks are available for mounting.

Box Rack Arm

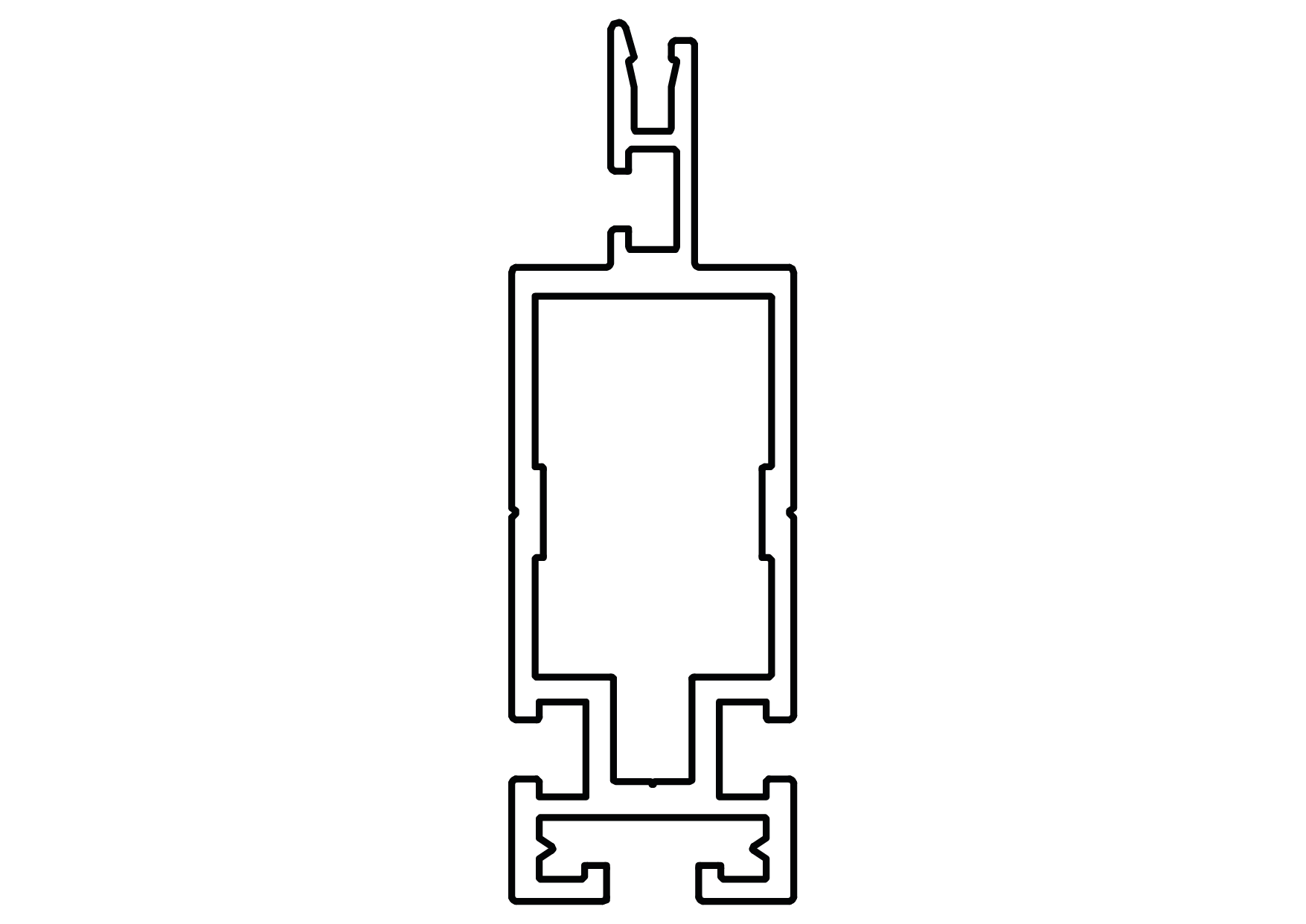

Profile box rack arm The box rack arm has a height of 98 mm. And because of that also called the S 98 mm rack arm. The box rack arm has five tracks. The pivot arms are clipped into the top track. The other tracks are available for mounting purposes.

Which type of rack arms is deployed depends on the project at hand. In most cases, the Standard Rack Arm will do the job perfectly. Depending on the louver type, the S 35 mm rack arm requires a mounting point every 1.200 to 2.250 mm. Where this is not possible, the Heavy Duty Rack Arm, or the Box Rack Arm can be used. based on project details, your contact at Sunshield will be able to advise you here.

Support distance aluminium louvers

S 35 mm rack arm
Interior
Exterior
48-E louver
1.800 mm
50-A louver
2.250 mm
75-E louver
1.800 mm
1.200 mm
80-R louver
2.250 mm
1.500 mm
88-E louver
1.800 mm
1.200 mm
96-E louver
1.800 mm
1.200 mm
107-E louver
1.800 mm
1.200 mm
S 80 mm rack arm
Interior
Exterior
48-E louver
3.250 mm
50-A louver
3.500 mm
75-E louver
3.000 mm
2.400 mm
80-R louver
3.500 mm
2.800 mm
88-E louver
3.000 mm
2.400 mm
96-E louver
3.000 mm
2.400 mm
107-E louver
3.000 mm
2.400 mm
S 98 mm rack arm
Interior
Exterior
48-E louver
4.000 mm
50-A louver
4.500 mm
75-E louver
4.200 mm
3.500 mm
80-R louver
5.000 mm
3.800 mm
88-E louver
4.200 mm
3.500 mm
96-E louver
4.200 mm
3.500 mm
107-E louver
4.200 mm
3.500 mm

Support distance wooden louvers

S 35 mm rack arm
Interior
Exterior
50-W louver
1.800 mm
68-W louver
1.800 mm
1.500 mm
74-W louver
1.800 mm
1.500 mm
87-W louver
1.800 mm
1.500 mm
98-W louver
1.800 mm
1.500 mm
S 80 mm rack arm
Interior
Exterior
50-W louver
3.500 mm
68-W louver
3.000 mm
2.800 mm
74-W louver
3.000 mm
2.800 mm
87-W louver
3.000 mm
2.800 mm
98-W louver
3.000 mm
2.800 mm
S 98 mm rack arm
Interior
Exterior
50-W louver
4.000 mm
68-W louver
4.200 mm
3.500 mm
74-W louver
4.200 mm
3.500 mm
87-W louver
4.200 mm
3.500 mm
98-W louver
4.200 mm
3.500 mm

Beam Rack Arm

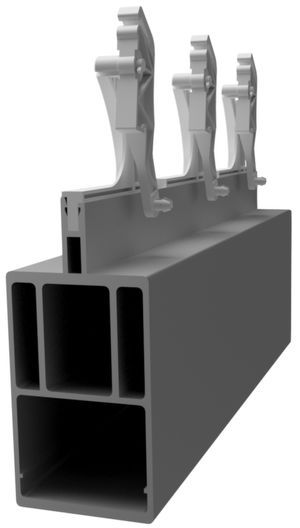

S 117 mm Beam Rack Arm

Actually, there is another rack arm option for the S-system; the Beam Rack Arm. This S 117 mm rack arm is specifically designed for louver roofs and pergolas. This rack arm has enough stiffness to span up to 4 m.

The beam rack arm is designed with a chamber in its lower half. This chamber offers enough room to house the motor, as well as LED spots – both operated with a remote control, of course.

Support brackets

Sunshield also has a large assortment of support brackets and a broad experience with different kinds of mounting methods. It is this combination of several types of rack arms, mounting brackets and mounting methods that guarantees a stylish and reliable installation is for every blind, in any situation.

Colours and treatments

Rack arms are made from extruded aluminium, and are usually either powder coated or anodized.
