S-system Clips 80-R Louver

The 80-R louver is one of the louver types of the S-system, that doesn't use the standard S-clip. It requires a custom slat clip. That is because the standard S-clip has been designed for extruded louvers. The 80-R, however, is roll formed, and because of that much thinner than the extruded louvers.

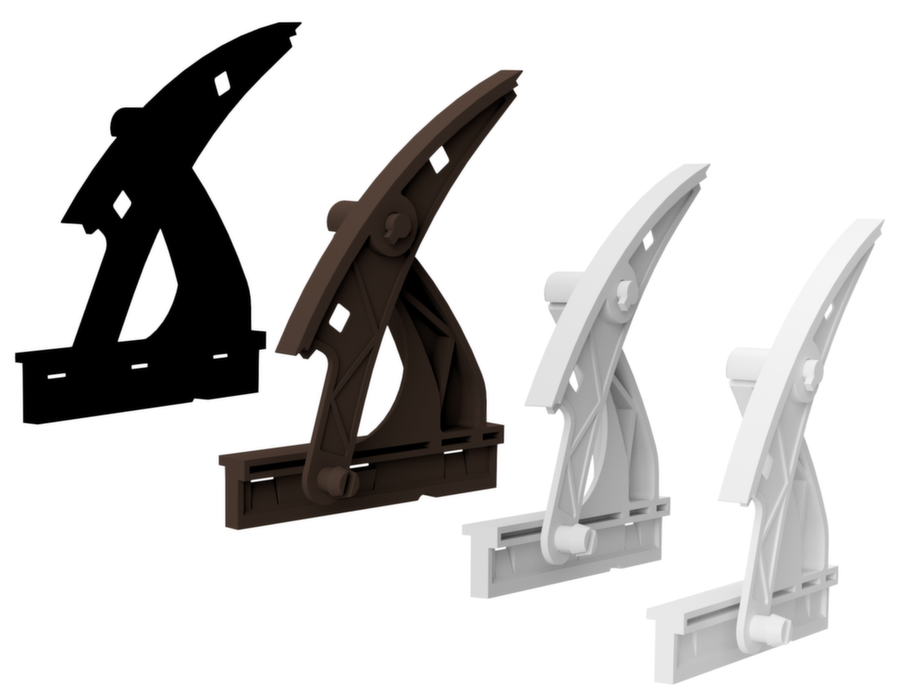

Rendered image of the clips of the 80-R louver

The clip is a two part mechanism. Jointly, the pivot arm and slat clip determine the position of the louver; from open to close, and any position in between.

Pivot arm

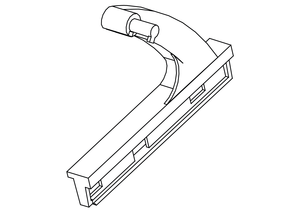

Sketch of pivot arm S-systemThe pivot arm is pressed into the top track of the rack. This makes a clipping sound, and the reason this part of the assembling process is called clipping.

Slat clip

Technical drawing of the slat clip for the 80-R louverThe 80-R slat clip is the part that holds the louver. The slat clip is connected to the pivot arm. Together these parts operate like a knee or elbow joint.

Retaining spring

Technical drawing of the retaining spring of the 80-R louverThe retaining spring, or storm spring, is stretched across the 80-R louver in order to increase its wind resistance.

Clip Colours

The pivot arms and slat clips are available in four colours:

Black

Brown

Ligth Grey

Pure White

RAL-9005

RAL-8028

RAL-7035

RAL-9010

Please note that the RAL colours stated are merely indications.
