Aluminium Louver 80R



The 80R louver is made of a high grade extruded aluminium. The size is 80 mm. It is suited for internal and external installation and for horizontal, vertical, and sloping situations. The possibilities in width, height, special shapes and operation are almost unlimited.



For a live impressions & different applications go to "More projects for this Product".



TECHNICAL INFORMATION & SYSTEM DETAILS

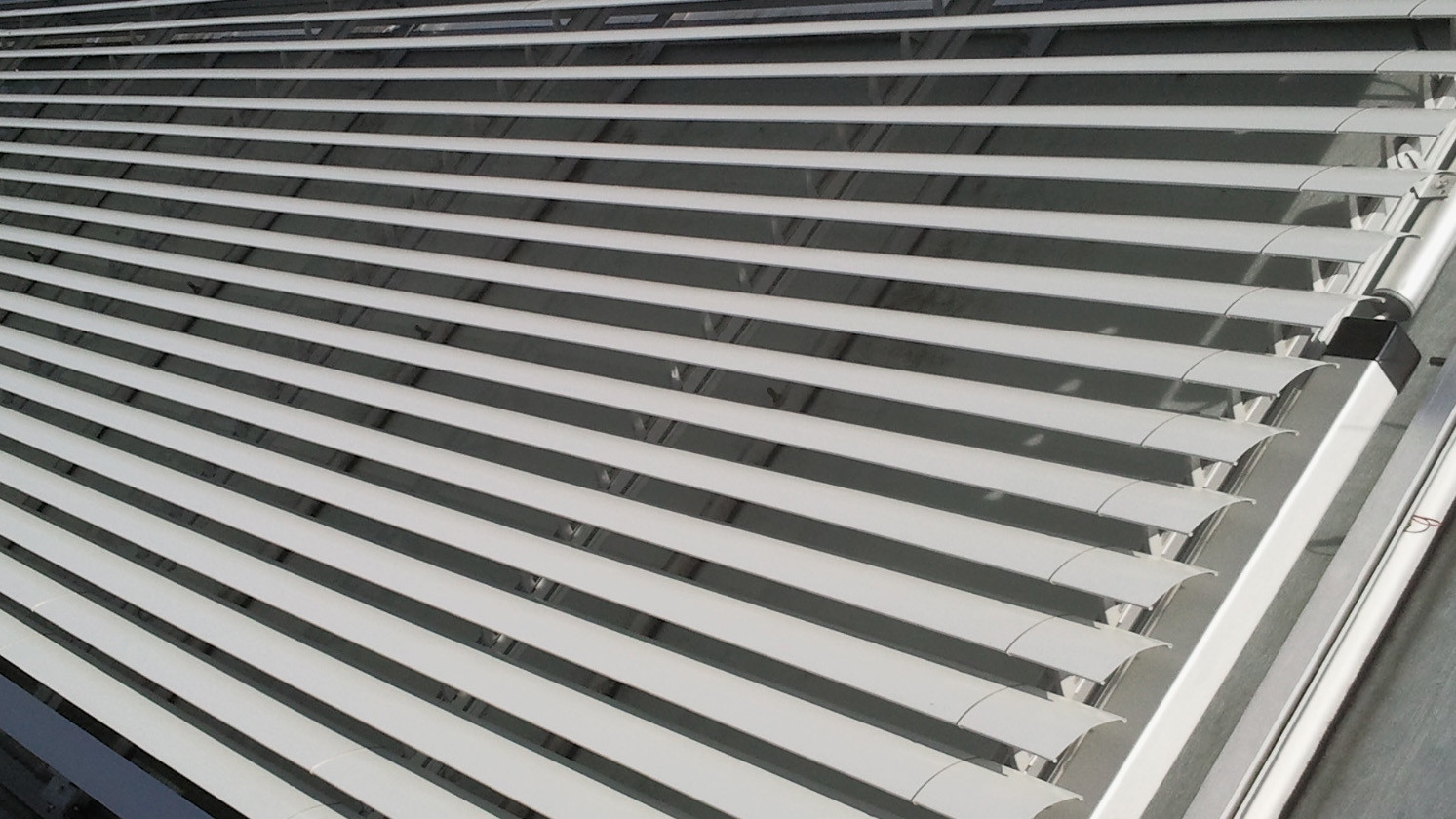

Below, detailed system photos are displayed. By moving the mouse on a photo there can be zoomed on details.







    80r LOUVER









    • Material: rigid 0,4 mm roll formed aluminum;
    • The louver is standard availabel in a variety of RAL colours;
    • Maximum length of louvers: 600 cm;
    • Number of louvers in one system (drop): no limitations;
    • Louver to louver distance: 70 mm;
    • Wide variety of motorized, manual and control options for fully tilting of louvers;
    • Wind resistance: highest class (upto 110 kms per hour);
    • 10 years Sunshield warranty.





    Main technical dimensions for aluminium louver 80R

    The next figure shows a schematic overview of a 80R system consisting of rack arms and 80R louvers.












    Aluminium louver 80R



    Size of louver

    80 mm



    Thickness of louver

    0,4 mm



    Louvers moveable

    0-  90 o



    Interior

    yes



    Exterior

    yes



    Maximum Width (W)

    600 cm



    Maximum Drop / Length (L) in drawing 560 cm  *

    600 cm



    Maximum area

    30 m2



    Louver - Louver distance (Step / Pitch) (S)

    70 mm




    Internal

    External

    Maximum Rack arm distance (X)

    140 cm

     90

    Maximum Side overhang (Y)

    40 cm

     30

    * = number of rack arms placed beneath each other is unlimited

    Aluminium louver 80R in different positions

    The 80R Louvers are moveable in every position between 0 and 95 degrees.                                         In the following overview the louvers are represented every 15 degrees from 0 to 90 degrees in vertical position (for normal windows) and horizontal position (for roof lights and sky lights).
    Of course the Sunshield blinds can be installed at any slope wished.







    In the above overview tree louvers are placed in the position 0°, 45° and 90 degrees.



    A stylish and reliable Installation for every 80R System

    The 80R System can be provided with 3 rack arms. In 90% of the projects the Standard Rack Arms fulfills the job perfectly, but in special circumstances the "Heavy Duty Rack Arm" or the "Box Rack Arm" are used. Additionally, Sunshield has a broad experience and a large assorment of mounting brackets and methods. With that, a stylish and reliable installation is guaranteed for every blind in every situation. For each project, the Sunshield engineers provide a detailed installation scheme, customized to the specific situation of that project. They are specialized in making the system "disappear" in the mullions, window frames and beams. It is guaranteed that the Sushield system gives an integrated view with the building.









    Rack arm

    Heavy Duty rack arm

    Box rack arm

    Beam Rack arm

    height

    35 mm

    80 mm

    98 mm

    116 mm



    A wide variety of Colours and Treatments

    Sunshield has many colours in stock. Additionally it is possible to have customized colouring and treatments. It is even possible that louvers, rack arm and plastic components each have a different colour to achieve sophistacted architectural impressions. The most common treatments for aluminium parts are Powder Coating and Anodising. Anodising can be done natural and in different colours. Powder coating is done in all RAL colours. Custom made colours and structures are possible at request.The 80R louver is standard available in the following colours. The RAL code mentioned is an indication of the colour.

    Jet Black

    RAL-9005

    Silver Aluminium

    RAL-9006

    Silver Aluminium Perforated

    RAL-9006

    Grey Aluminium

    RAL-9007

    Pure White

    RAL-9010

    Pure White Perforated

    RAL-9010

    Pure White 30% Gloss

    RAL-9010

    Traffic White

    RAL-9016

    Anthracite Grey

    RAL-7016

    Light Grey

    RAL-7035

    Gentian Blue

    RAL-5010





    The plastic components that make the louvers turn are made from a high-grade polyamide and are standard available in 4 colours. If necessary even the colour of these plastic components can be customized.

    Black

    Brown

    Ligth Grey

    Pure White

    RAL-9005

    RAL-8028

    RAL-7035

    RAL-9010
