Fixed Louvers / Aerofoils / Solar Blades

The C100 louver is made of a high grade extuded aluminium. The size is 100 mm. It is suited for external installation: horizontal, vertical or sloping situations. The possibilities in width, height and shapes are almost ulimited.

TECHNICAL INFORMATION & SYSTEM DETAILS

Below, detailed system photos are displayed. By moving the mouse on a photo there can be zoomed on details.

Main technical dimensions for aluminium louver C100

The next figure shows a schematic overview of a C100
system consisting of rafters and C100 louvers.

	Aluminium louver C100
Size of louver	100 mm
Thickness of louver	1,2 mm
Louvers moveable	No
Interior	yes
Exterior	yes
Maximum Width (W)	690 cm
Maximum Drop / Length (L) in drawing 600 cm *	600 cm
Maximum area	40 m2
Louver - Louver distance (Step / Pitch) (S) (in drawing 100 mm)	Flex.
	Up to 10 m	Above 10 m
Maximum Rack arm distance (X)	150 cm	130 cm
Maximum Side overhang (Y)	40 cm	30 cm
* = number of rafters placed beneath each other is unlimited

Different positions of the C100 Vertical Blinds

The are three different clips for the C100 Vertical Blinds.
In the following overview the clips withs corresponding angle are displayed.

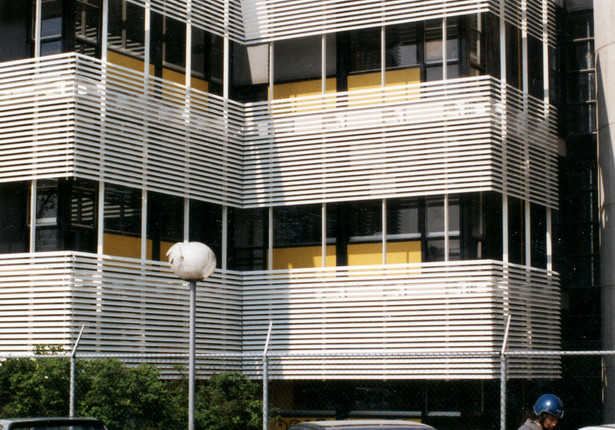

A stylish and reliable Installation for every C100 System

The C100 System can be provided with 3 rafters. The size of the overhang influence which the type of rafter is used. The clip determines the angele of the louver. Additionally, Sunshield has a broad experience and a large assorment of mounting brackets and methods. With that, a stylish and reliable installation is guaranteed for every blind in every situation. For each project, the Sunshield engineers provide a detailed installation scheme, customized to the specific situation of that project. It is guaranteed that the Sushield system gives an integrated view with the building.

A wide variety of Colours and Treatments

Sunshield has many colours in stock. Additionally it is possible to have customized colouring and treatments. It is even possible that louvers, rafters and plastic components each have a different colour to achieve sophistacted architectural impressions. The most common treatments for aluminium parts are Powder Coating and Anodising. Anodising can be done natural and in different colours. Powder coating is done in all RAL colours. Custom made colours and structures are possible at request. A overview with most common colours is given below.
The plastic component where the louver is clamped around is made from a high-grade polyamide and are standard available in 4 colours. If necessary even the colour of these plastic components can be customized.
