Brise Soleil (C100)



TECHNICAL INFORMATION & SYSTEM DETAILS

Below, detailed system photos are displayed. By moving the mouse on a photo there can be zoomed on details.



    Main technical dimensions for Brise Soleil

    The next figure shows a schematic overview of a C100
    system consisting of rafters and C100 louvers.
















    Aluminium louver C100



    Size of louver

    100 mm



    Thickness of louver

    1,2 mm



    Louvers moveable

    No



    Interior

    Yes



    Exterior

    Yes



    Maximum Width

    690 cm



    Maximum Drop / Length

    600 cm



    Maximum area

    40 m2



    Louver - Louver distance (Step / Pitch)

    Flex.



    Different versions of the Brise Soleil

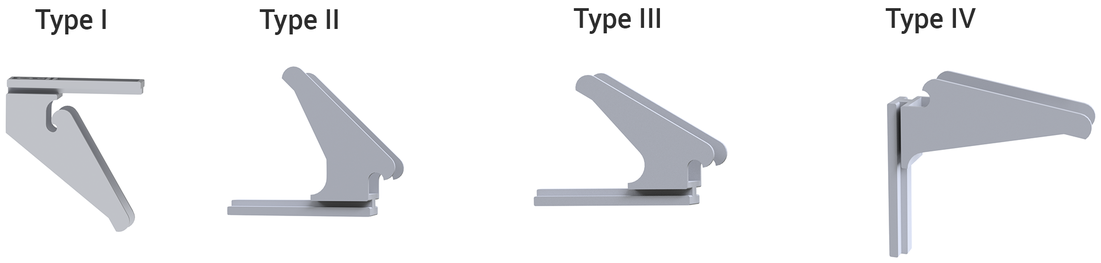

    The are four different clips for the C100 louver.

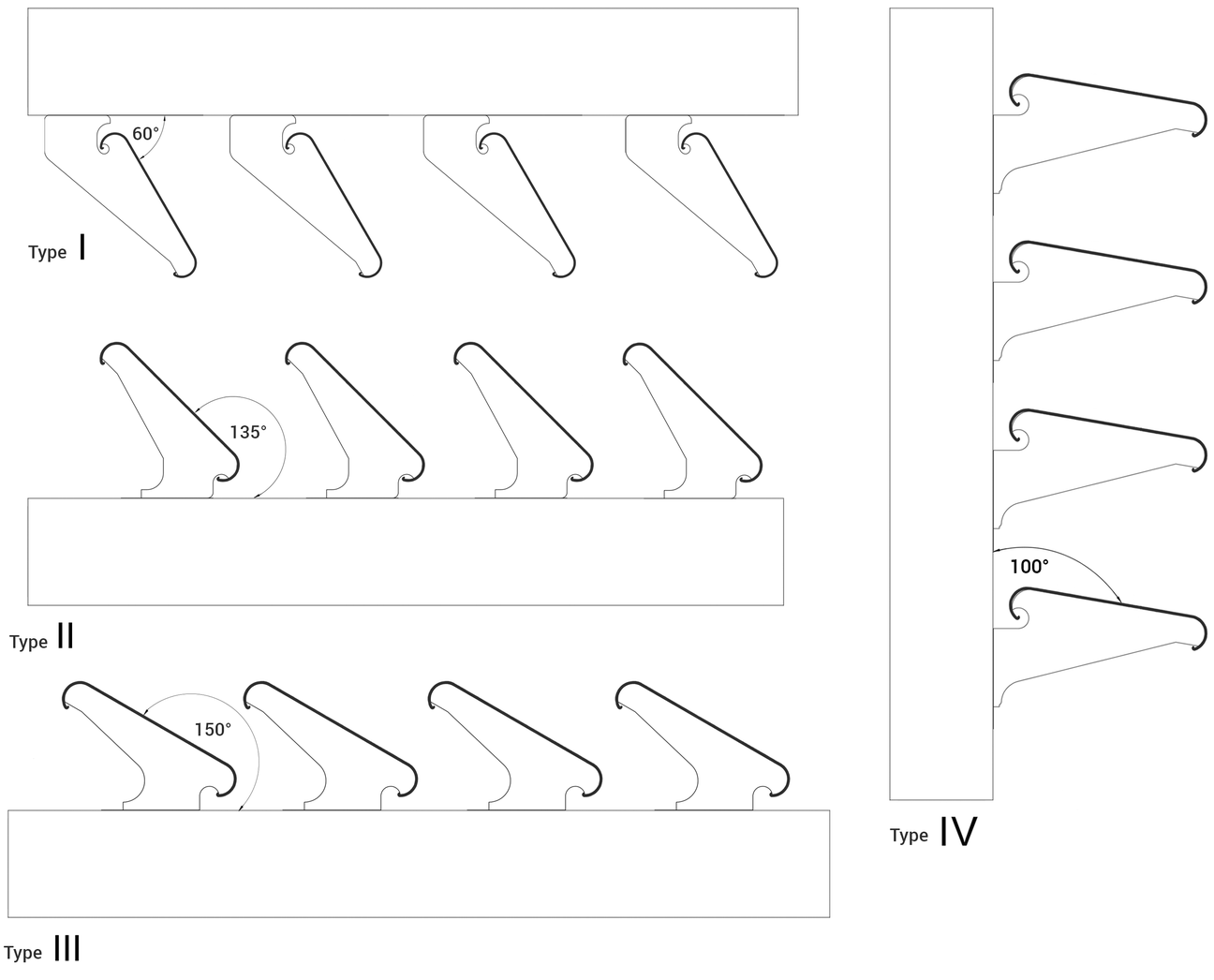

    In the following overview the clips withs corresponding angle are displayed.







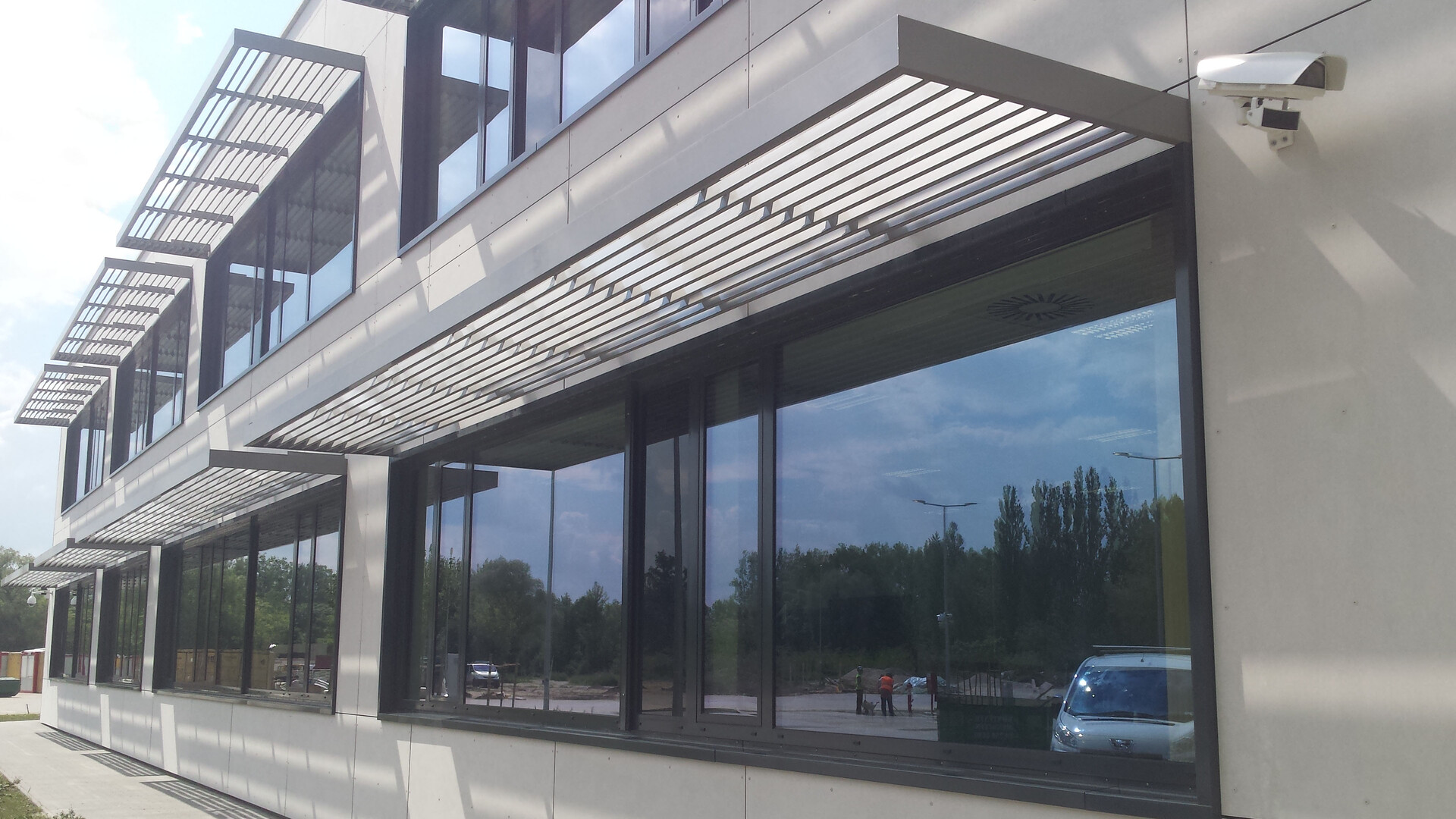

    A stylish and reliable Installation for every C100 System

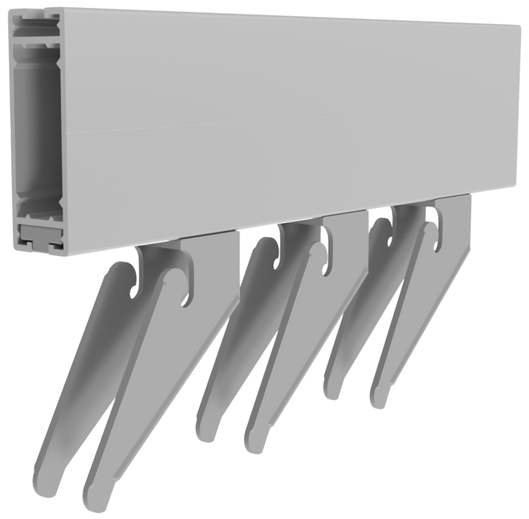

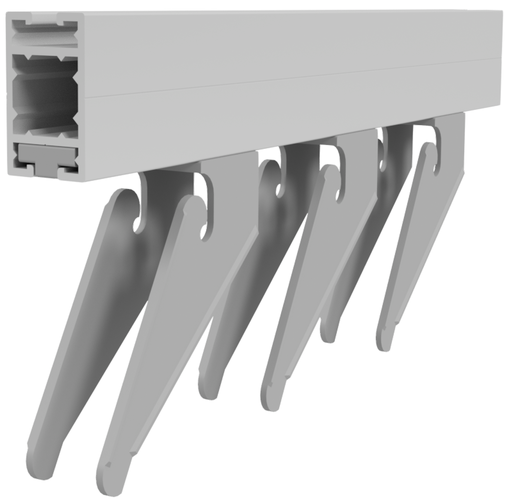

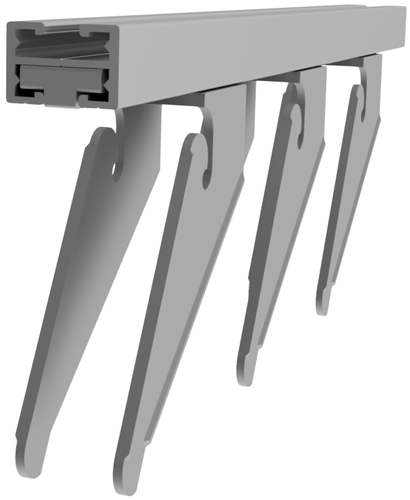

    The C100 System can be provided with 3 rafters. The size of the overhang influence which the type of rafter is used. The clip determines the angele of the louver. Additionally, Sunshield has a broad experience and a large assorment of mounting brackets and methods. With that, a stylish and reliable installation is guaranteed for every blind in every situation. For each project, the Sunshield engineers provide a detailed installation scheme, customized to the specific situation of that project. It is guaranteed that the Sushield system gives an integrated view with the building.







    A wide variety of Colours and Treatments

    Sunshield has many colours in stock. Additionally it is possible to have customized colouring and treatments. It is even possible that louvers, rafters and plastic components each have a different colour to achieve sophistacted architectural impressions. The most common treatments for aluminium parts are Powder Coating and Anodising. Anodising can be done natural and in different colours. Powder coating is done in all RAL colours. Custom made colours and structures are possible at request. A overview with most common colours is given below.
    The plastic component where the louver is clamped around is made from a high-grade polyamide and are standard available in 4 colours. If necessary even the colour of these plastic components can be customized.
