Wood Louver 94W



 The 94W is a non retractable louver blind made of wood, Western Red Cedar is the type of wood which is msot commonly used. With a width of 94 mm it size lies between the 74W and the 148W. It is suited for internal and external installation to horizontal, vertical, sloping or unusual shaped windows.





For a live impressions & different applications go to "More projects for this Product".



TECHNICAL INFORMATION & SYSTEM DETAILS

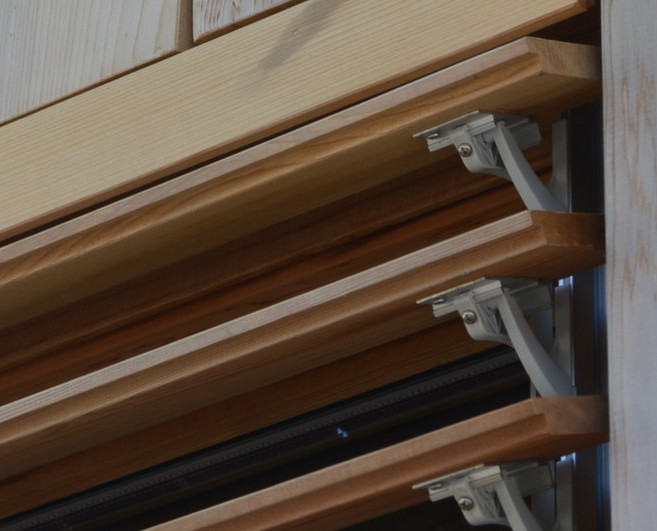

Below, detailed system photos are displayed. By moving the mouse on a photo there can be zoomed on details.






    94W LOUVER







    • Material: plane Red Cedar wood, 14 or 16 mm;
    • The louver is standard available in Red Cedar, other types of wood and different treatments are possible;
    • Maximum length of louvers: 400 cm;
    • Number of louvers in one system (drop): no limitations;
    • Louver to louver distance: 90 mm;
    • Wide variety of motorized, manual and control options for fully tilting of louvers;
    • Wind resistance: highest class (upto 110 kms per hour);
    • 10 years Sunshield warranty.





    Main technical dimensions for aluminium louver 94W

    The next figure shows a schematic overview of a 94W
    system consisting of rack arms and 94W louvers.












    Wood louver 94W



    Size of louver

    94 mm



    Thickness of louver

    14 or 16 mm



    Louvers moveable

    0-  90 o



    Interior

    yes



    Exterior

    yes



    Maximum Width (W)

    400 cm



    Maximum Drop / Length (L) in drawing 540 cm  *

    600 cm



    Maximum area

    20 m2



    Louver - Louver distance (Step / Pitch) (S)

    90 mm




    Internal

    External

    Maximum Rack arm distance (X)

    130 cm

    120 cm

    Maximum Side overhang (Y)

    30 cm

    30 cm

    * = number of rack arms placed beneath each other is unlimited

    Wood louver 94W in different positions

    The 94W Louvers are moveable in every position between 0 and 95 degrees.                                         In the following overview the louvers are represented every 15 degrees from 0 to 90 degrees in vertical position (for normal windows) and horizontal position (for roof lights and sky lights).
    Of course the Sunshield blinds can be installed at any slope wished.





    In the above overview tree louvers are placed in the position 0°, 45° and 90 degrees.



    A stylish and reliable Installation for every 94W System

    The 94W System can be provided with 3 rack arms. In 90% of the projects the Standard Rack Arms fulfills the job perfectly, but in special circumstances the "Heavy Duty Rack Arm" or the "Box Rack Arm" are used. Additionally, Sunshield has a broad experience and a large assorment of mounting brackets and methods. With that, a stylish and reliable installation is guaranteed for every blind in every situation. For each project, the Sunshield engineers provide a detailed installation scheme, customized to the specific situation of that project. They are specialized in making the system "disappear" in the mullions, window frames and beams. It is guaranteed that the Sushield system gives an integrated view with the building.









    Rack arm

    Heavy Duty rack arm

    Box rack arm

    Beam Rack arm

    height

    35 mm

    80 mm

    98 mm

    116 mm



    A wide variety of Colours and types of wood

    Sunshield has many colours in stock. Additionally it is possible to have customized colouring and treatments. It is even possible that louvers, rack arm and plastic components each have a different colour to achieve sophistacted architectural impressions. Western Red Cedar is the type of wood which is often used due to its ability to stay levelled. Due to that the product is custom made it is possible to us other types of wood within in the limitations of that the wood is suited to make louvers from. Custom made colours and structures are possible at request. A overview with most common colours is given below.





    The plastic components that make the louvers turn are made from a high-grade polyamide and are standard available in 4 colours. If necessary even the colour of these plastic components can be customized.



    Black

    Auburn

    Ligth Grey

    Pure White

    RAL-9005

    RAL-8028

    RAL-7035

    RAL-9010
