Aluminium Louver 150E







The 150E louver is made of a high grade extruded aluminium. The size is 150 mm. It is suited for external installation (horizontal / vertical). The possibilities in width, height, special shapes and operation are almost unlimited. What special is about this louver is the maximum open position is 105° instead of 90°.


For a live impressions & different applications go to "More projects for this Product".



TECHNICAL INFORMATION & SYSTEM DETAILS

Below, detailed system photos and 3D renders are displayed. By moving the mouse on a photo there can be zoomed on details.







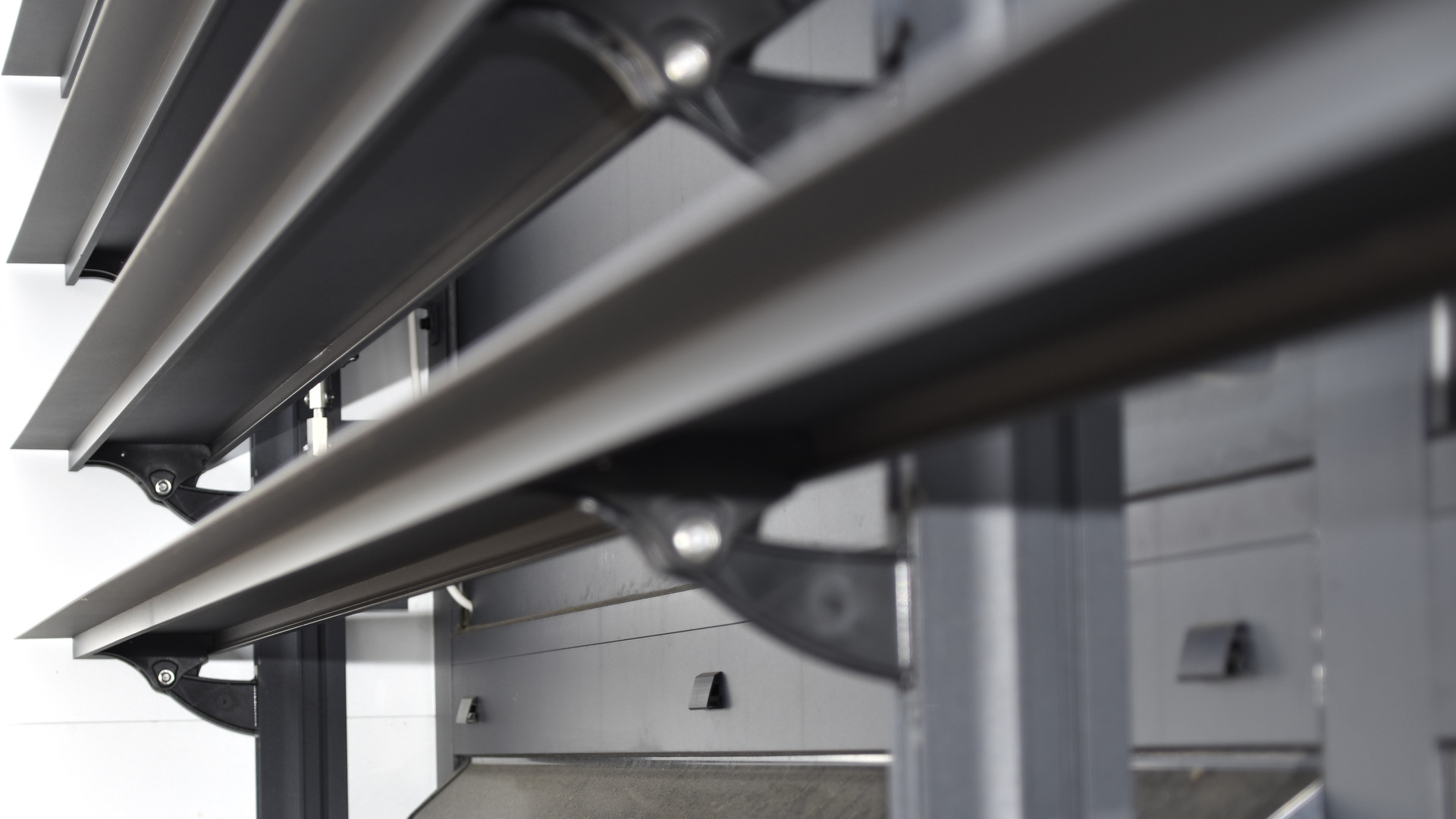

    150E LOUVER








    • Material: extremely rigid 1,8 mm extruded aluminium;
    • All RAL colours possible, and many anodised and special treatments;
    • Maximum length of louvers: 690 cm;
    • Number of louvers in one system (drop): no limitations;
    • Louver to louver distance: 140 mm;
    • Wide variety of motorized, manual and control options for fully tilting of louvers;
    • Wind resistance: highest class (upto 110 kms per hour);
    • 10 years Sunshield warranty.

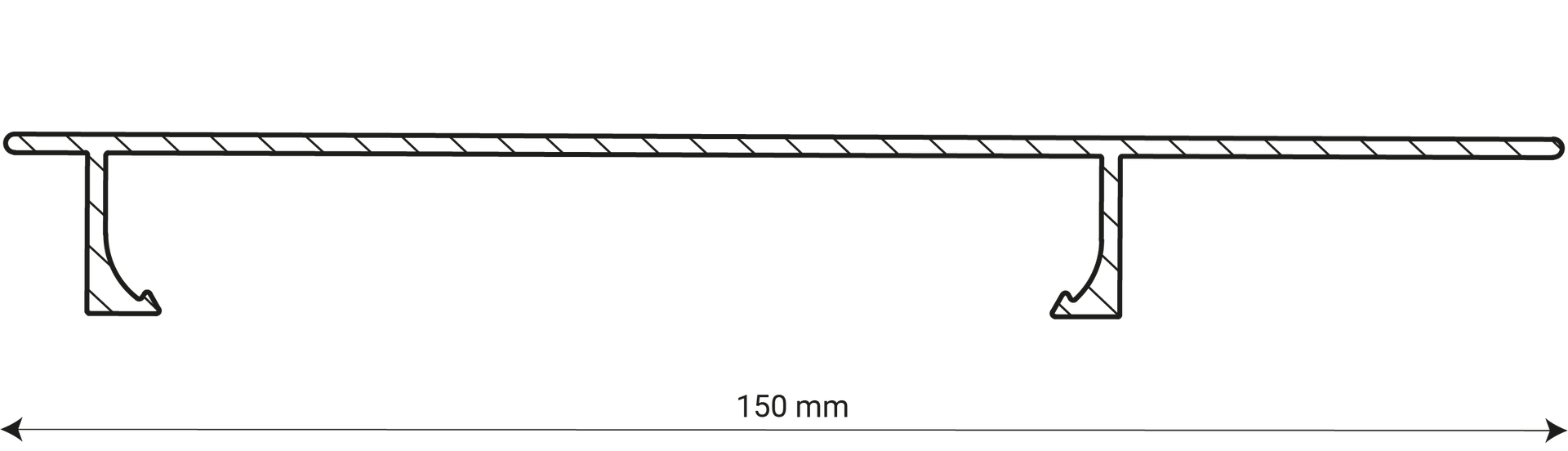

    Main technical dimensions for aluminium louver 150E

    The next figure shows a schematic overview of a 150E
    system consisting of rack arms and 150E louvers.






    Aluminium louver 150E



    Size of louver

    150 mm



    Thickness of louver

    1,8 mm



    Louvers moveable

    0o -  105o



    Interior

    yes



    Exterior

    yes



    Maximum Width (W)

    690 cm



    Maximum Drop / Length (L) in drawing 560 cm  *

    600 cm



    Maximum area

    25 m2



    Louver - Louver distance (Step / Pitch) (S)

    140 mm




    Internal

    External

    Maximum Rack arm distance (X)

    200 cm

    180 cm

    Maximum Side overhang (Y)

    50 cm

    40 cm

    * = number of rack arms placed beneath each other is unlimited

    Aluminium louver 150E in different positions

    The 150E Louvers are moveable in every position between 0 and 105 degrees.                                      In the following overview the louvers are represented every 15 degrees from 0 to 105 degrees in vertical position (for normal windows) and horizontal position (for roof lights and sky lights).
    Of course the Sunshield blinds can be installed at any slope wished.







    In the above overview tree louvers are placed in the position 0°, 45°, 90° and 105 degrees.



    A stylish and reliable Installation for every 150E System

    The 150E System can be provided with 2 rack arms. Additionally, Sunshield has a broad experience and a large assorment of mounting brackets and methods. With that, a stylish and reliable installation is guaranteed for every blind in every situation. For each project, the Sunshield engineers provide a detailed installation scheme, customized to the specific situation of that project. They are specialized in making the system "disappear" in the mullions, window frames and beams. It is guaranteed that the Sushield system gives an integrated view with the building.










    Heavy Duty rack arm

    Box rack arm

    height

    65 mm

    120 mm



    A wide variety of Colours and Treatments

    Sunshield has many colours in stock. Additionally it is possible to have customized colouring and treatments. It is even possible that louvers, rack arm and plastic components each have a different colour to achieve sophistacted architectural impressions. The most common treatments for aluminium parts are Powder Coating and Anodising. Anodising can be done natural and in different colours. Powder coating is done in all RAL colours. Custom made colours and structures are possible at request. A overview with most common colours is given below.

    Jet Black

    RAL-9005

    Silver Aluminium

    RAL-9006

    Grey Aluminium

    RAL-9007









    Pure White

    RAL-9010

    Traffic White

    RAL-9016

    Sepia Brown

    RAL-8014

    Beige Brown

    RAL-8024

    Anthracite Grey

    RAL-7016

    Pebble Grey

    RAL-7032

    Ligth Grey

    RAL-7035

    Platinum Grey

    RAL-7036

    Agate Grey

    RAL-7038

    Turquoise Green

    RAL-6016

    Gentian Blue

    RAL-5010

    Wine Red

    RAL-3005



    The plastic components that make the louvers turn are made from a high-grade polyamide and are standard available in 4 colours. If necessary even the colour of these plastic components can be customized.




    Black

    Brown

    Ligth Grey

    Pure White

    RAL-9005

    RAL-8028

    RAL-7035

    RAL-9010



    Quality and Certificates of Environmentally friendly production
