Aluminium Louver 96-E

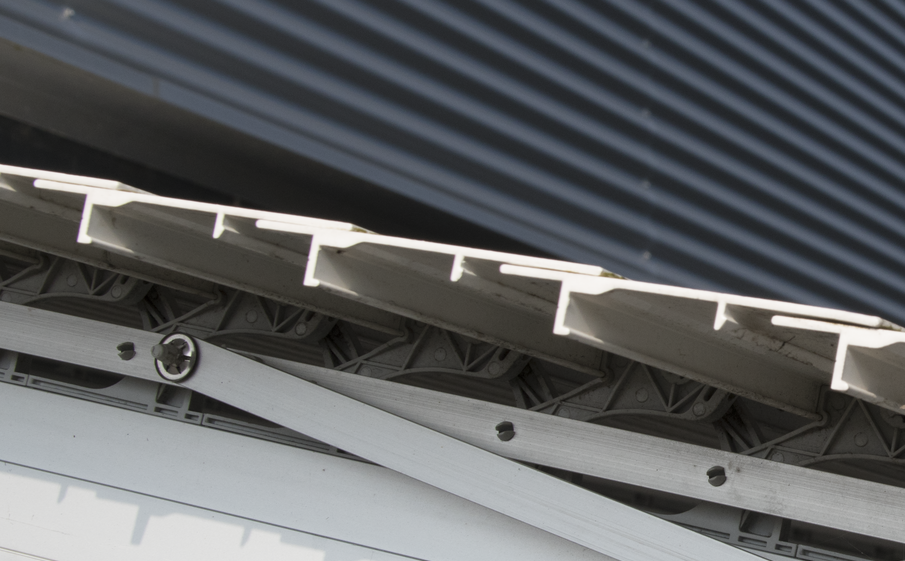

Detail of a 96-E louver system

A 96-E louver system is a non-retractable slatted blind with 96-E louvers. These louvers are made from high-grade extruded aluminium, and have a width 96 mm. A 96-E louver system is suited for all kinds of internal and external installations; horizontal, vertical, sloping, and upside down. 96-E louvers are usually movable, but can also be placed in a fixed position.

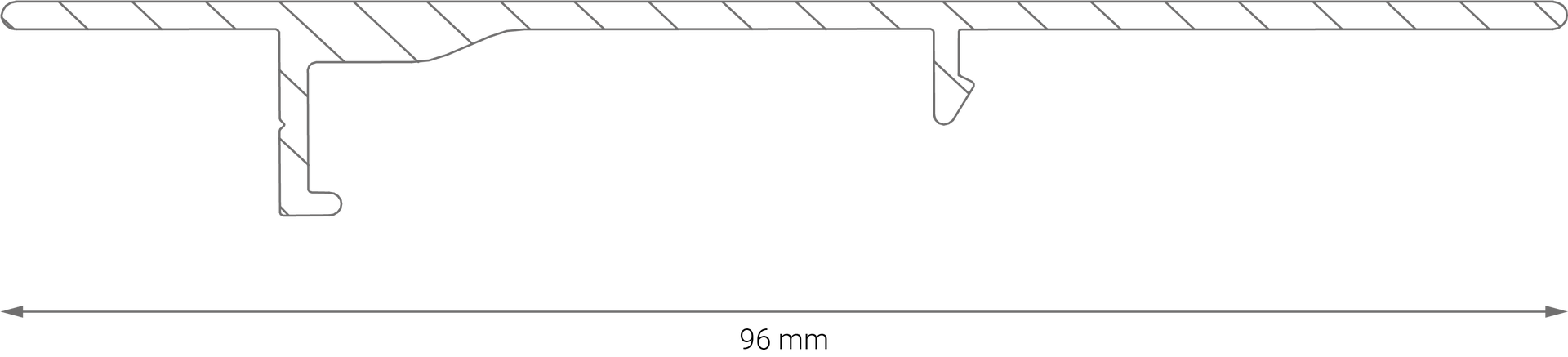

Profile of the 96-E louver

The front, the visible side, of the 96-E louver has a flat shape, offering a good overlap. The back of the blade is designed for optimal fixation of the clip that holds the slat. The design of the back side of a louver follows from the function and form of the front.

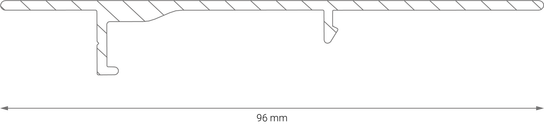

Technical drawing of the 96-E louver

The 96-E louver system

The following image shows a schematic representation of a 96-E louver system. Such a system consists of at least two rack arms, and a number of louvers, blades.

Drawing rack arm distance S-system

Louver properties

Property
General
Louver type
96-E
Size of louver
96 mm
Thickness of louver
1,8 mm
Movable
0° – 90°
Louver distance / Step (S)*
90 mm
Maximum width (W)*
600 cm
Maximum drop / length (L)*
600 cm

Interior
Exterior
Maximum rack arm distance (X)
140 cm
130 cm
Maximum side overhang (Y)
40 cm
30 cm
Support distance


S 35 mm rack arm
180 cm
120 cm
S 80 mm rack arm
300 cm
240 cm
S 98 mm rack arm
420 cm
350 cm
* = the number of rack arms placed on top, or next to each other, is unlimited.
