Wood Louver 74W


The 74W is a non retractable louver blind made of wood, Western Red Cedar is the type of wood which is most commonly used. With a width of 74 mm it size lies between the 50W and the 94W. It is suited for internal and external installation to horizontal, vertical, sloping or unusual shaped windows.


For a live impressions & different applications go to "More projects for this Product".

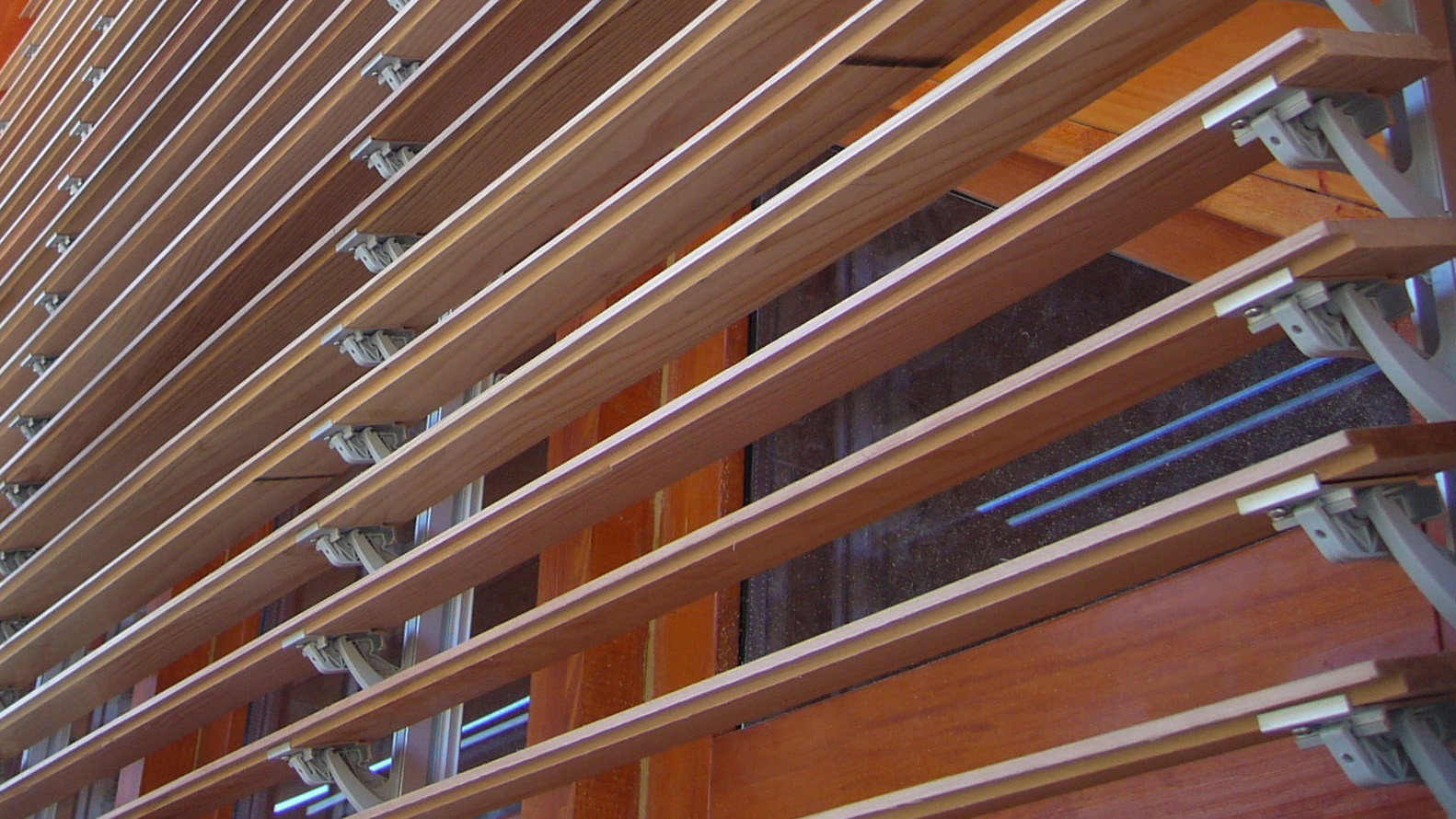

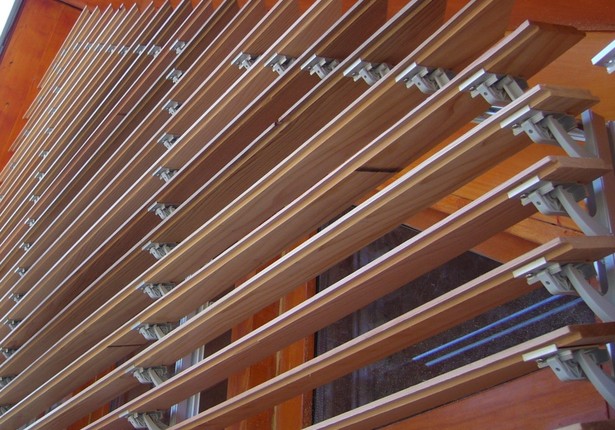

Below, detailed system photos are displayed. By moving the mouse on a photo there can be zoomed on details.


    74w LOUVER

    • Material: plane Red Cedar wood, 10 mm;
    • The louver is standard available in Red Cedar, other types of wood and different treatments are possible;
    • Maximum length of louvers: 400 cm;
    • Number of louvers in one system (drop): no limitations;
    • Louver to louver distance: 70 mm;
    • Wide variety of motorized, manual and control options for fully tilting of louvers;
    • Wind resistance: highest class (upto 110 kms per hour);
    • 10 years Sunshield warranty.


    Main technical dimensions for aluminium louver 74W

    The next figure shows a schematic overview of a 74W
    system consisting of rack arms and 74W louvers.





    Wood louver 74W


    Size of louver

    74 mm


    Thickness of louver

    10 mm


    Louvers moveable

    0-  90 o








    Maximum Width (W)

    400 cm


    Maximum Drop / Length (L) in drawing 560 cm  *

    600 cm


    Maximum area

    20 m2


    Louver - Louver distance (Step / Pitch) (S)

    70 mm




    Maximum Rack arm distance (X)

    130 cm

    120 cm

    Maximum Side overhang (Y)

    30 cm

    30 cm

    * = number of rack arms placed beneath each other is unlimited


    Wood louver 74W in different positions

    The 74W Louvers are moveable in every position between 0 and 95 degrees.                                         In the following overview the louvers are represented every 15 degrees from 0 to 90 degrees in vertical position (for normal windows) and horizontal position (for roof lights and sky lights).
    Of course the Sunshield blinds can be installed at any slope wished.




    In the above overview tree louvers are placed in the position 0°, 45° and 90 degrees.


    A stylish and reliable Installation for every 74W System

    The 74W System can be provided with 3 rack arms. In 90% of the projects the Standard Rack Arms fulfills the job perfectly, but in special circumstances the "Heavy Duty Rack Arm" or the "Box Rack Arm" are used. Additionally, Sunshield has a broad experience and a large assorment of mounting brackets and methods. With that, a stylish and reliable installation is guaranteed for every blind in every situation. For each project, the Sunshield engineers provide a detailed installation scheme, customized to the specific situation of that project. They are specialized in making the system "disappear" in the mullions, window frames and beams. It is guaranteed that the Sushield system gives an integrated view with the building.





    Rack arm

    Heavy Duty rack arm

    Box rack arm


    35 mm

    80 mm

    98 mm


    Installation depth

    Depending on the choice of rack arm and the installation brackets the system will have a specific installation depth. The standard bracket solutions have been represented in an overview that you can open by clicking on the image to the right. If you need a larger or smaller installation depth, the Sunshield engineers can adapt the system to your requirements.



    A wide variety of Colours and types of wood

    Sunshield has many colours in stock. Additionally it is possible to have customized colouring and treatments. It is even possible that louvers, rack arm and plastic components each have a different colour to achieve sophisticated architectural impressions. Western Red Cedar is the type of wood which is advised due to its ability to stay levelled. Custom made colours and structures are possible at request. A overview with most common colours is given below.

                                                                                                                          Western Red Cedar





    The plastic components that make the louvers turn are made from a high-grade polyamide and are standard available in 4 colours. If necessary even the colour of these plastic components can be customized.




    Ligth Grey

    Pure White
