Aluminium Louver 50A



The 50A louver is made from aluminium, and can be used in almost all interior blinds: vertical, horizontally and even sloped. The 50A louver is available in a wide variety of colours, and with special prints - such as wood imitation prints -on request.


For a live impressions & different applications go to "More projects for this Product".



TECHNICAL INFORMATION & SYSTEM DETAILS

Below, detailed system photos are displayed. By moving the mouse on a photo there can be zoomed on details.






    50A LOUVER







    • Material: rigid 0,2 mm roll formed aluminum;
    • The louver is standard available in a variety of RAL colours;
    • Maximum length of louvers: 600 cm;
    • Number of louvers in one system (drop): no limitations;
    • Louver to louver distance: 45 mm;
    • Wide variety of motorized, manualand control options for fully tilting of louvers;
    • 10 years Sunshield warranty.





    Main technical dimensions for aluminium louver 50A

    The next figure shows a schematic overview of a 50A
    system consisting of rack arms and 50A louvers.














    Aluminium louver 50A



    Size of louver

    50 mm



    Thickness of louver

    0,2 mm



    Louvers moveable

    0-  90 o



    Interior

    yes



    Exterior

    no



    Maximum Width (W)

    600 cm



    Maximum Drop / Length (L) in drawing 540 cm  *

    600 cm



    Maximum area

    35 m2



    Louver - Louver distance (Step / Pitch) (S)

    45 mm




    Internal

    External

    Maximum Rack arm distance (X)

    90 cm

    -

    Maximum Side overhang (Y)

    40 cm

    -

    * = number of rack arms placed beneath each other is unlimited



    Aluminium louver 50A in different positions

    The 50A Louvers are moveable in every position between 0 and 95 degrees.                                         In the following overview the louvers are represented every 15 degrees from 0 to 90 degrees in vertical position (for normal windows) and horizontal position (for roof lights and sky lights).
    Of course the Sunshield blinds can be installed at any slope wished.





    In the above overview tree louvers are placed in the position 0°, 45° and 90 degrees.



    A stylish and reliable Installation for every 50A System

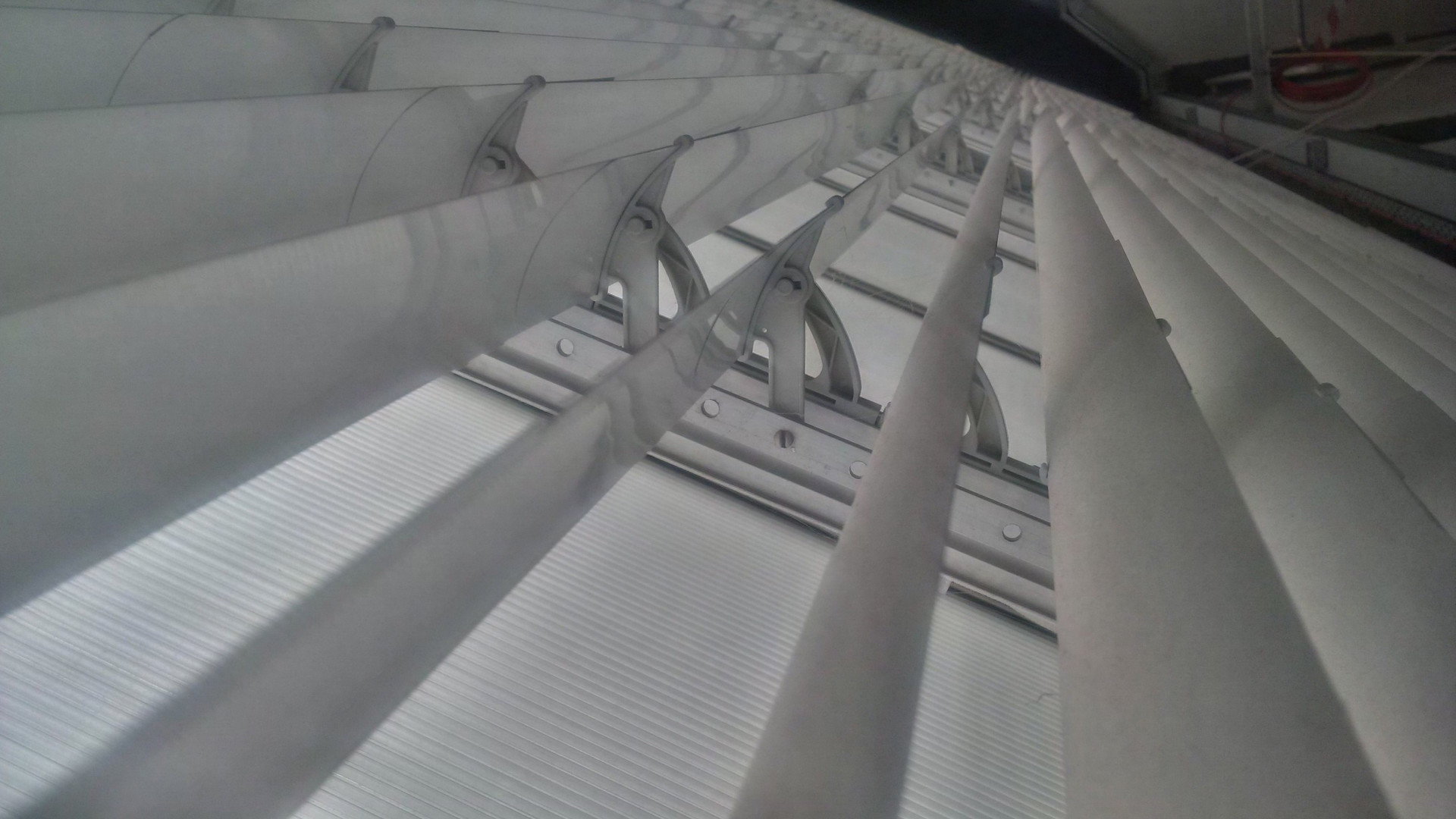

    The 50A System can be provided with 3 rack arms. In 90% of the projects the Standard Rack Arms fulfills the job perfectly, but in special circumstances the "Heavy Duty Rack Arm" or the "Box Rack Arm" are used. Additionally, Sunshield has a broad experience and a large assorment of mounting brackets and methods. With that, a stylish and reliable installation is guaranteed for every blind in every situation. For each project, the Sunshield engineers provide a detailed installation scheme, customized to the specific situation of that project. They are specialized in making the system "disappear" in the mullions, window frames and beams. It is guaranteed that the Sushield system gives an integrated view with the building.













    Rack arm

    Heavy Duty rack arm

    Box rack arm

    height

    35 mm

    80 mm

    98 mm





    A wide variety of Colours and Treatments

    Sunshield has many colours in stock. Additionally it is possible to have customized colouring and treatments. It is even possible that louvers, rack arm and plastic components each have a different colour to achieve sophistacted architectural impressions. The most common treatments for aluminium parts are Powder Coating and Anodising. Anodising can be done natural and in different colours. Powder coating is done in all RAL colours. Custom made colours and structures are possible at request.The 50A louver is standard available in the following colours.The RAL code mentioned is an indication of the colour.

    Jet Black

    RAL-9005

    Silver Aluminium

    RAL-9006

    Grey Aluminium

    RAL-9007

    Pure White

    RAL-9010

    Traffic White

    RAL-9016

    Traffic White Perforated

    RAL-9016

    Sepia Brown

    RAL-8014

     Light Grey

    RAL-7035

    Red Oak Imitation

    The plastic components that make the louvers turn are made from a high-grade polyamide and are standard available in 4 colours. If necessary even the colour of these plastic components can be customized.



    Black

    Brown

    Ligth Grey

    Pure White

    RAL-9005

    RAL-8028

    RAL-7035

    RAL-9010
