Aluminium Louver 107E



Profile of the 107-E louver



The 107-E louver is made of a high grade extruded aluminium. The size is 107 mm.

It is suited for internal and external installation to horizontal, vertical, sloping or unusual shaped windows. The possibilities in width, height, special shapes and operation are almost unlimited.


For a live impressions & different applications go to "More projects for this Product".



TECHNICAL INFORMATION & SYSTEM DETAILS

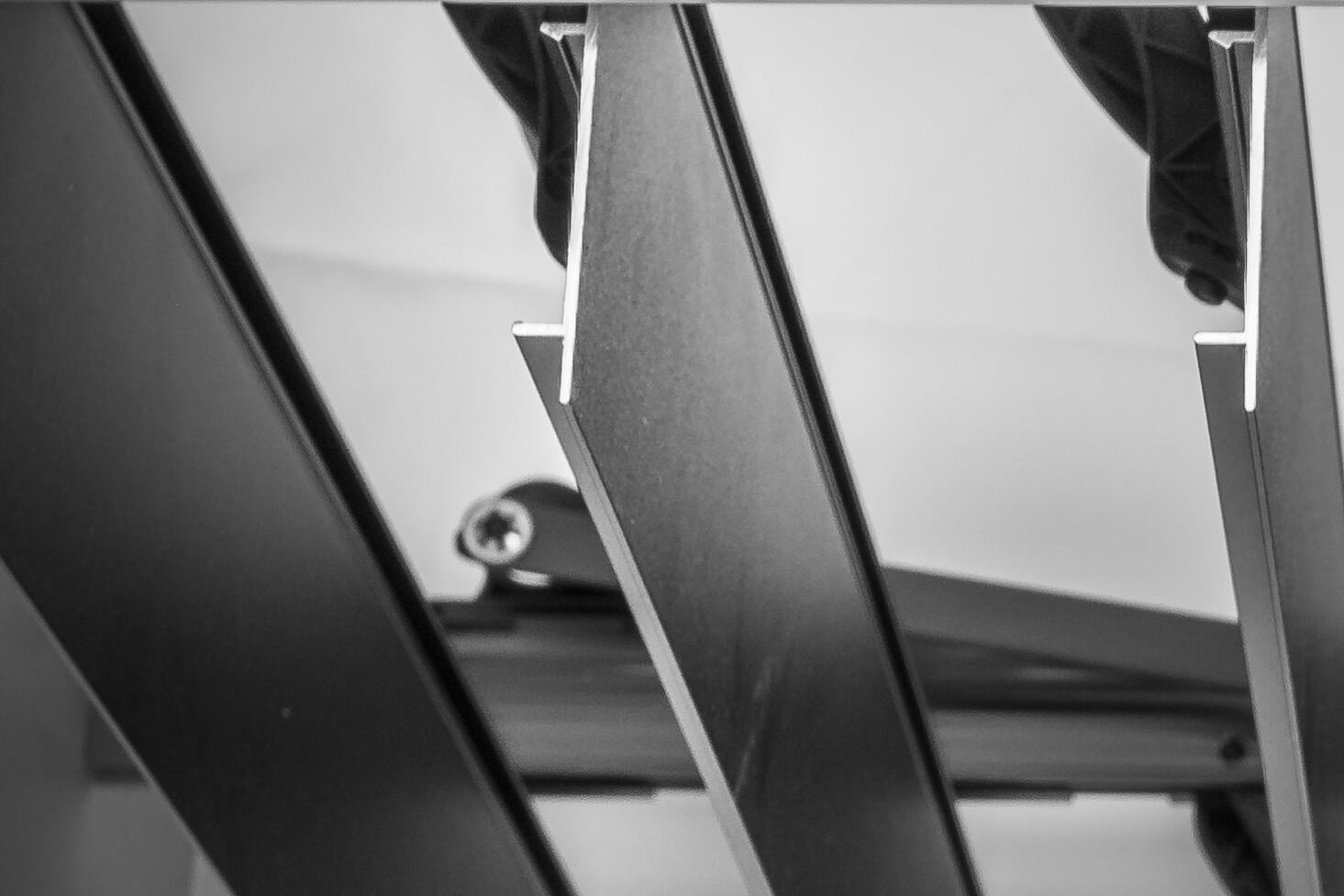

Below, detailed system photos and 3D renders are displayed. By moving the mouse on a photo there can be zoomed on details.





Main technical dimensions for aluminium louver 107-E

The next figure shows a schematic overview of a 107-E
system consisting of rack arms and 107-E louvers.







Aluminium louver 107-E



Size of louver

107 mm



Thickness of louver

1,8 mm



Louvers moveable

0o -  90 o



The 107-E is specially designed for a Patio roof

(Interior / Exterior)

yes



Maximum Width (W)

600 cm



Maximum Drop / Length (L) in drawing 540 cm  *

600 cm



Maximum area

25 m2



Louver - Louver distance (Step / Pitch) (S)

90 mm




Internal

External

Maximum Rack arm distance (X)

140 cm

130 cm

Maximum Side overhang (Y)

40 cm

30 cm

* = number of rack arms placed beneath each other is unlimited

A stylish and reliable Installation for every 107-E System

The 107-E System can be provided with 3 rack arms. In 90% of the projects the Standard Rack Arms fulfills the job perfectly, but in special circumstances the "Heavy Duty Rack Arm" or the "Box Rack Arm" are used. Additionally, Sunshield has a broad experience and a large assorment of mounting brackets and methods. With that, a stylish and reliable installation is guaranteed for every blind in every situation. For each project, the Sunshield engineers provide a detailed installation scheme, customized to the specific situation of that project. They are specialized in making the system "disappear" in the mullions, window frames and beams. It is guaranteed that the Sushield system gives an integrated view with the building.








Rack arm

Heavy Duty rack arm

Box rack arm

Beam Rack arm

(specially developed for pergolas)

height

35 mm

80 mm

98 mm

116 mm



A wide variety of Colours and Treatments

Sunshield has many colours in stock. Additionally it is possible to have customized colouring and treatments. It is even possible that louvers, rack arm and plastic components each have a different colour to achieve sophistacted architectural impressions. The most common treatments for aluminium parts are Powder Coating and Anodising. Anodising can be done natural and in different colours. Powder coating is done in all RAL colours. Custom made colours and structures are possible at request. A overview with most common colours is given below.

Jet Black

RAL-9005

Silver Aluminium

RAL-9006

Grey Aluminium

RAL-9007









Pure White

RAL-9010

Traffic White

RAL-9016

Sepia Brown

RAL-8014

Beige Brown

RAL-8024

Anthracite Grey

RAL-7016

Pebble Grey

RAL-7032

Ligth Grey

RAL-7035

Platinum Grey

RAL-7036

Agate Grey

RAL-7038

Turquoise Green

RAL-6016

Gentian Blue

RAL-5010

Wine Red

RAL-3005



The plastic components that make the louvers turn are made from a high-grade polyamide and are standard available in 4 colours. If necessary even the colour of these plastic components can be customized.




Black

Brown

Ligth Grey

Pure White

RAL-9005

RAL-8028

RAL-7035

RAL-9010
